FEFCO 0711Shipping
Six-bottle shipper 260×180×330 dieline
B-flute crash-lock outer for six wine bottles with dividers. A ready-sized preset of the crash-lock shipper — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 180 × 330 mm
Outside266.4 × 186.4 × 342.8 mm
Flat blank921.6 × 538.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0711
- Inside size
- Length 260 · Width 180 · Height 330 mm
- Size range
- Length 100–800 · Width 60–600 · Height 50–800 mm
- Manufacturing
- 263.2 × 183.2 × 336.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.468 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB double
- Good for
The flat dieline

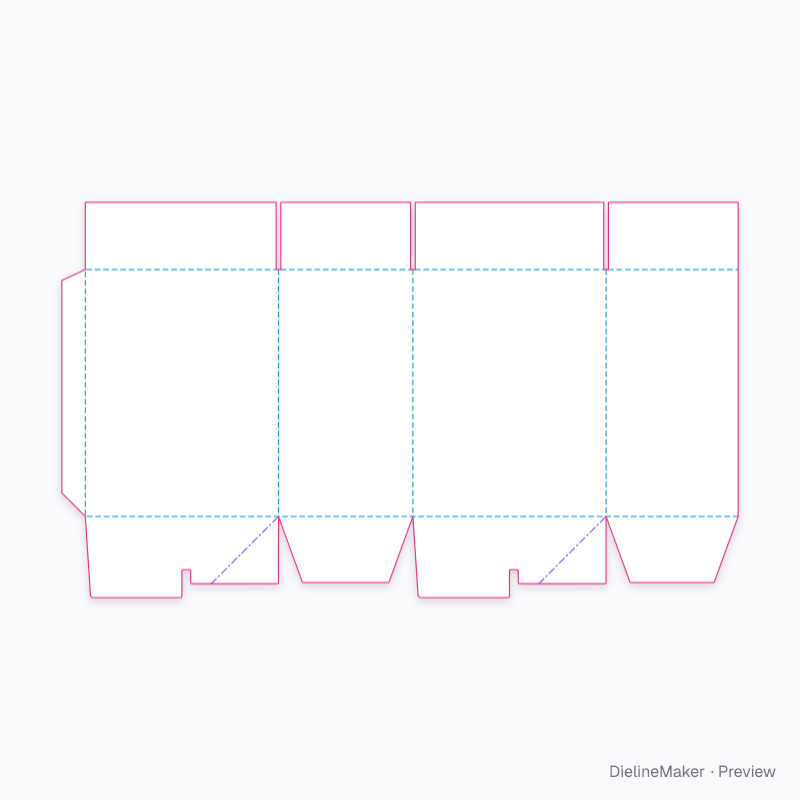

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0711 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 263.2 × 336.4 | L + T × H + 2T |
| Left side | 183.2 × 336.4 | W + T × H + 2T |
| Back | 263.2 × 336.4 | L + T × H + 2T |
| Right side | 180 × 336.4 | W × H + 2T |
| Glue flap | 32 × 336.4 | – × H + 2T |
| Crash-lock flap (back) | 263.2 × 110.6 | L + T × – |
| Glued web | 64.4 × 129.5 | – |
| Bottom side flap | 183.2 × 90 | W + T × – |
| Crash-lock flap (front) | 263.2 × 110.6 | L + T × – |
| Glued web | 129.5 × 64.4 | – |
| Bottom side flap | 180 × 90 | W × – |
| Top outer flap | 260 × 91.6 | L × – |
| Top inner flap ×2 | 176.8 × 91.6 | W − T × – |
| Top outer flap | 256.8 × 91.6 | L − T × – |
