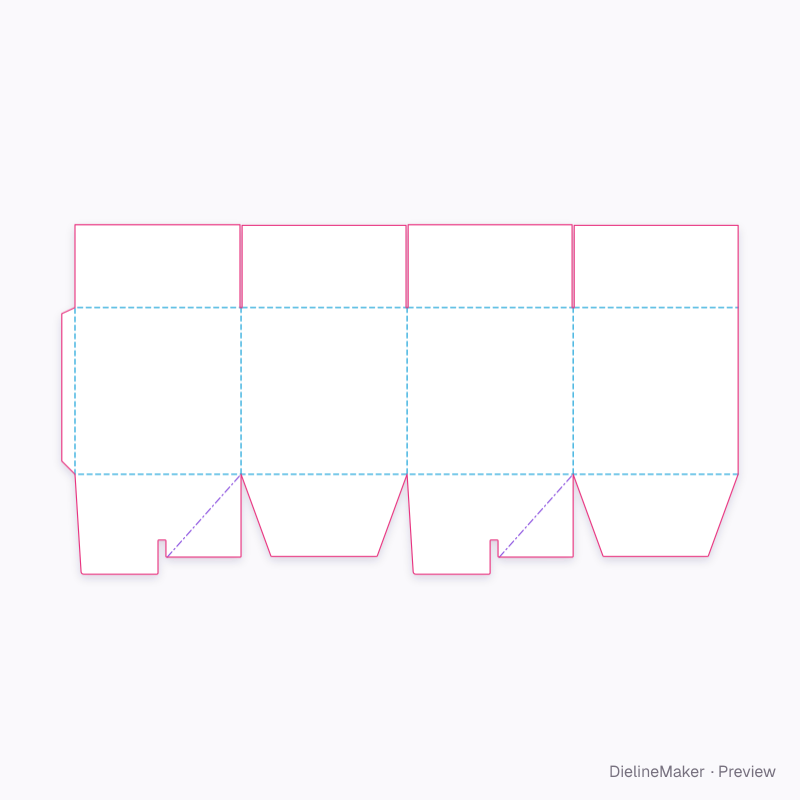

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0711Shipping
250 mm cube parcel carton — Crash-lock shipper dieline
Editable 250 × 250 × 250 mm starting point using crash-lock shipper. Adjust the dimensions to your product before prototyping. A ready-sized preset of the crash-lock shipper — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 250 × 250 mm
Outside253.2 × 253.2 × 256.4 mm
Flat blank1024.8 × 530.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0711
- Inside size
- Length 250 · Width 250 · Height 250 mm
- Size range
- Length 100–800 · Width 60–600 · Height 50–800 mm
- Manufacturing
- 251.6 × 251.6 × 253.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.503 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB double
- Good for

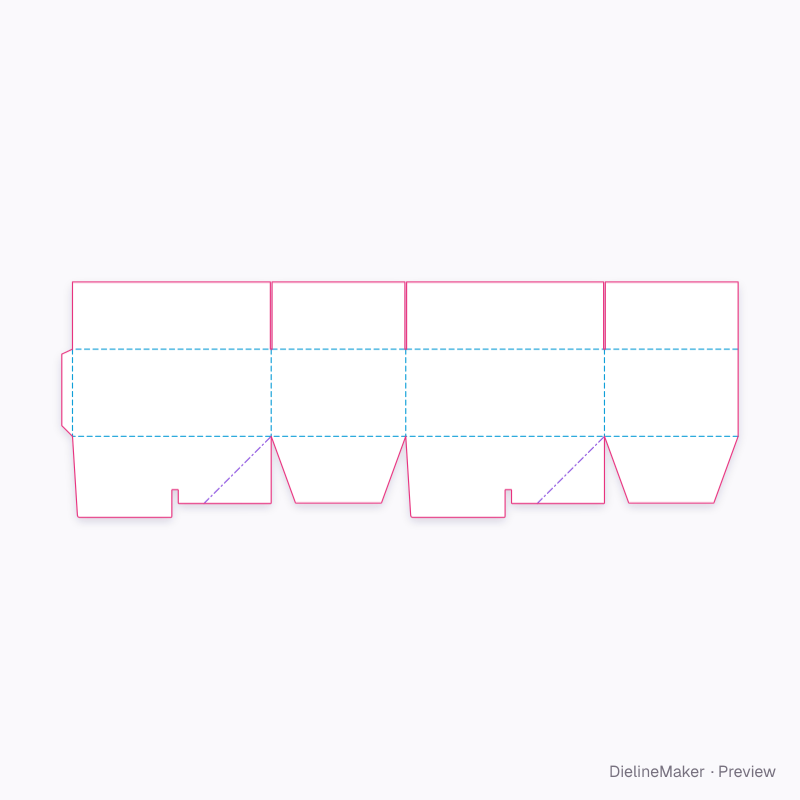

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0711 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 251.6 × 253.2 | L + T × H + 2T |
| Left side | 251.6 × 253.2 | W + T × H + 2T |
| Back | 251.6 × 253.2 | L + T × H + 2T |
| Right side | 250 × 253.2 | W × H + 2T |
| Glue flap | 20 × 253.2 | – |
| Crash-lock flap (back) | 251.6 × 151.8 | – |
| Glued web ×2 | 83.2 × 168.3 | – |
| Bottom side flap | 251.6 × 124.8 | – |
| Crash-lock flap (front) | 251.6 × 151.8 | – |
| Bottom side flap | 250 × 124.8 | – |
| Top outer flap | 250 × 125.8 | – |
| Top inner flap ×2 | 248.4 × 124.8 | – |
| Top outer flap | 248.4 × 125.8 | – |
