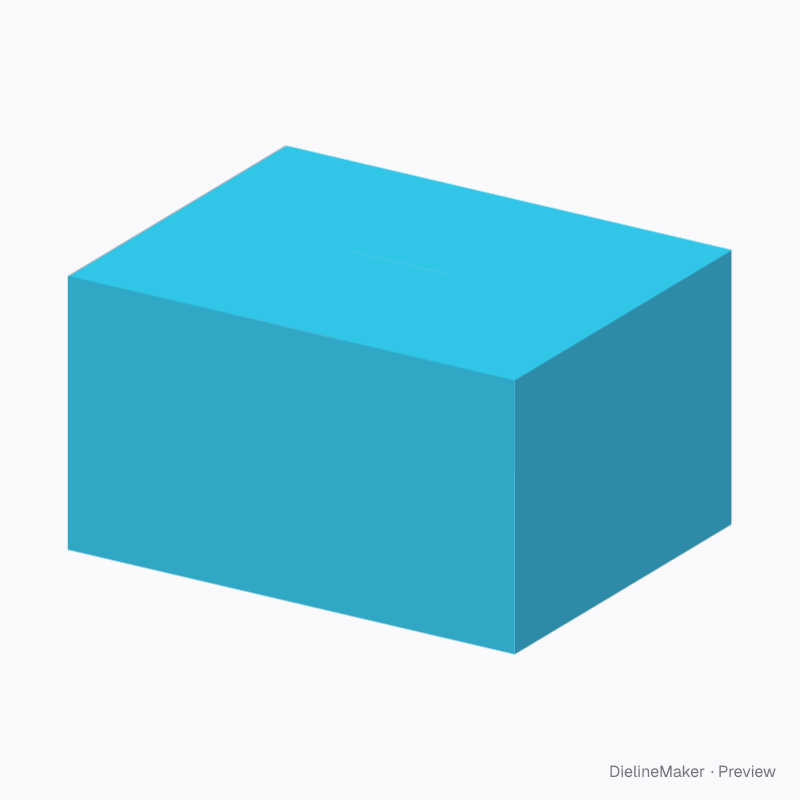

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0711Shipping
Soft goods shipping carton — Crash-lock shipper dieline
Editable 450 × 350 × 250 mm starting point using crash-lock shipper. Adjust the dimensions to your product before prototyping. A ready-sized preset of the crash-lock shipper — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside450 × 350 × 250 mm
Outside453.2 × 353.2 × 256.4 mm
Flat blank1624.8 × 640.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0711
- Inside size
- Length 450 · Width 350 · Height 250 mm
- Size range
- Length 100–800 · Width 60–600 · Height 50–800 mm
- Manufacturing
- 451.6 × 351.6 × 253.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.964 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0711 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 451.6 × 253.2 | L + T × H + 2T |
| Left side | 351.6 × 253.2 | W + T × H + 2T |
| Back | 451.6 × 253.2 | L + T × H + 2T |
| Right side | 350 × 253.2 | W × H + 2T |
| Glue flap | 20 × 253.2 | – × H + 2T |
| Crash-lock flap (back) | 451.6 × 211.8 | L + T × – |
| Glued web | 248.6 × 123.9 | – |
| Bottom side flap | 351.6 × 175 | W + T × – |
| Crash-lock flap (front) | 451.6 × 211.8 | L + T × – |
| Glued web | 123.9 × 248.6 | – |
| Bottom side flap | 350 × 175 | W × – |
| Top outer flap | 450 × 175.8 | L × – |
| Top inner flap ×2 | 348.4 × 175.8 | W − T × – |
| Top outer flap | 448.4 × 175.8 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
