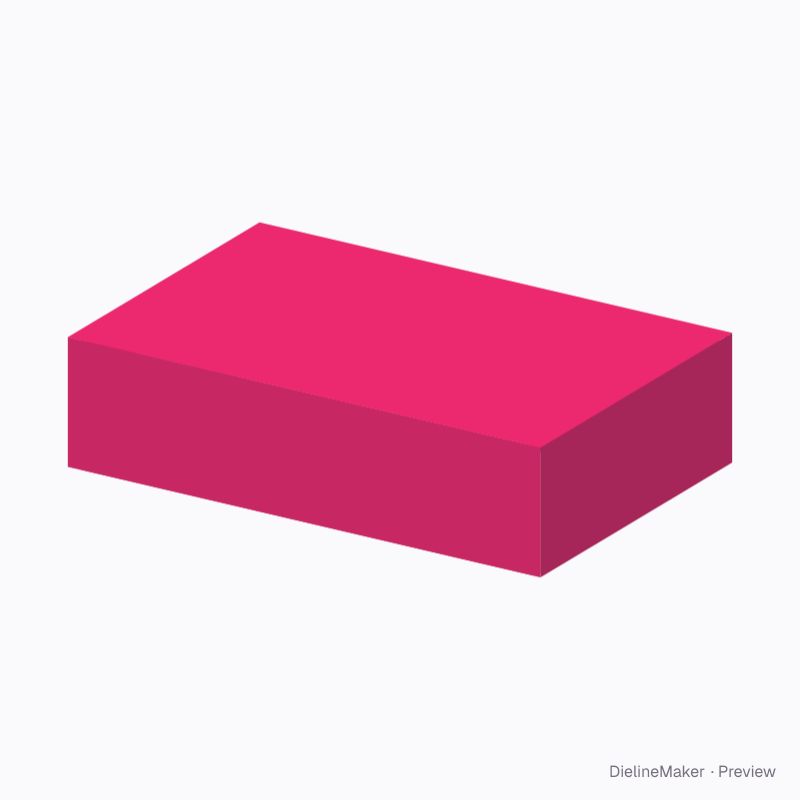

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0309Trays & lids
Telescope box with gusseted corners dieline
Base and lid each fold from one rectangular sheet; the corner squares crease on the diagonal and fold flat inside the end walls. A ready-sized preset of the telescope box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 80 mm
Outside323.2 × 210.4 × 83.2 mm
Flat blank483.2 × 370.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0309
- Inside size
- Length 300 · Width 200 · Height 80 mm
- Size range
- Length 40–700 · Width 30–500 · Height 15–300 mm
- Manufacturing
- 308 × 201.6 × 80.8 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Base, Lid
- Board area
- 0.350 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- FBB 400SBS 350Kraft 350Black 350GD2 350E-flute KE-flute WF-fluteSBS 18 pt
- Good for

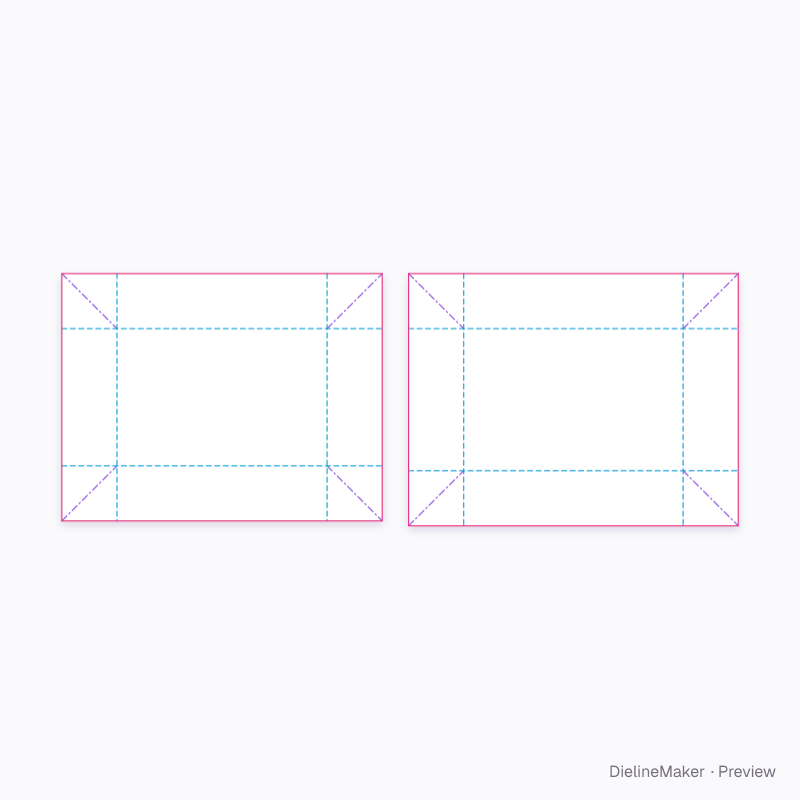

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0309 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseBase | 308 × 201.6 | – × W + T |
| FrontBase | 308 × 80.8 | – × H + T/2 |
| BackBase | 308 × 80.8 | – × H + T/2 |
| Left endBase | 80.8 × 201.6 | H + T/2 × W + T |
| Right endBase | 80.8 × 201.6 | H + T/2 × W + T |
| Corner web ×4Base | 80.8 × 80.8 | – × H + T/2 |
| Corner web ×4Base | 114.3 × 57.1 | – |
| Pose rigLid | 100 × 52.9 | – |
| Lid topLid | 100 × 155.9 | – |
| BackLid | 321.6 × 80.8 | – × H + T/2 |
| FrontLid | 321.6 × 80.8 | – × H + T/2 |
| Left endLid | 80.8 × 208.8 | H + T/2 × – |
| Right endLid | 80.8 × 208.8 | H + T/2 × – |
| Corner web ×4Lid | 80.8 × 80.8 | – × H + T/2 |
| Corner web ×4Lid | 114.3 × 57.1 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid depthmm
- Thumb notcheson / off
- Windowon / off
